P8 Outdoor Advertising LED Displays With 960x960mm ROHS Shopping Mall Led Screen
Detail of Advertising LED Display Screen :
1. Outdoor SMD triple LED high-definition display technology enables a broader range of vision.
2. Use more reliable integrated packaging technology.
3. vivid color performance, full-screen color and brightness, to achieve a high degree of consistency.

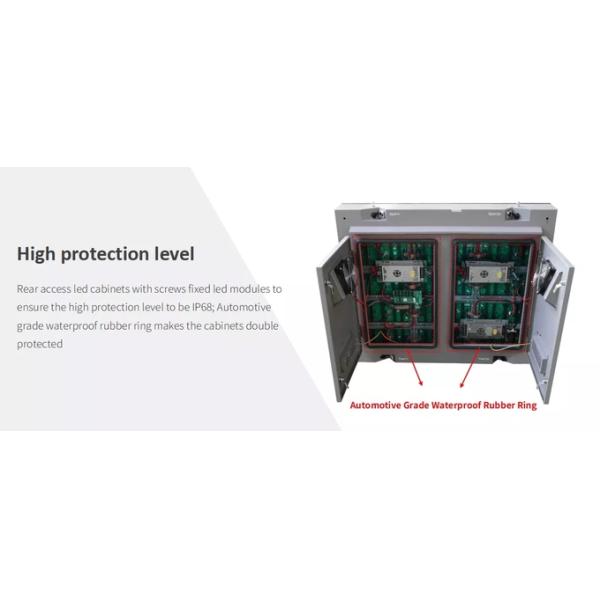

4. The unique mechanical structure design, easy accessibility, a person is able to dismantle the entire screen.
5. The horizontal and vertical viewing angles up to 140 degrees.
6. The focus on high-brightness SMD outdoor LED display solutions, protection class IP 65, brightness up to 6500cd / m.
| Advertising LED Display Screen | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
| Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
| Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
Advertising LED Display Screen Our service:
Q1: What does the dual backup means?
A1: The dual backup means if one set of control system can not work. Then other set of control can replace it to continue work. It
will not affect whole led screen working situation.
Q2: Can its brightness can be higher?A2: Yes. Of course, here is a solution to make the whole brightness to be 10000nits.
Q3:How long for the warranty? Can the warranty be longer?
A3: On usual, warranty is 2 years. Of course,according to customers' requirements,the warranty can be longer such as 3 years or 5
years.
Q4:Except the whole screen and its accessories, what I need to prepare by myself?
A4: Power box, computer,external power cable, external network cable.
Q5:Can this transparent led screen has energy saving advantage?
A5: Yes. Of course, the energy saving is one of its important advantage. It can save a lots of power. In some degree, it can also
save a lots of costs in electricity.
