King Visionled P2 P3 P4, Pantalla LED De Alta Definición, Para Escenario, Vídeo, Pared, Interior
Application:
1)Super slim,super light,easy to carry,to transport.
Cabinet size:500mm*500mm*50mm(P3,P4,P5)
Cabinet weight:8kg
2)Die-casting Aluminum: very stable, no deformation.
3)Brightness:1/8 scan, up to 5000cd/m2
4)No noise: with fanless power supply, it’s completely quiet.
5)Fast installation: only one man can install 100 cabinets by hand within an hour
6)High definition:43234dots/sqm
| Indoor Rental led screen specification |
| Pixel | 2.97mm | 3.91mm | 4.81mm |
| LED Encapsulation | SMD1515 | SMD2121 | SMD2121 |
| Brightness | 1100nit | 1100nit | 1100nit |
| Module Size(mm) | 250x250 | 250x250/ 250×500 | 250×500/250x250 |
| Cabinet Size | 500x500x80 | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Scan Method | 1/14 Scan | 1/16 Scan | 1/13 Scan |
| Weight | 8Kg | 12.5Kg/ 8Kg | 12.5Kg/ 8Kg |
| Cabinet Resolution | 84x168/84x84dots | 256x128dots / 128x128dots | 104x208dots/104x104dots |
| Pixel Density | 112896Pixel/㎡ | 65536 Pixel/㎡ | 43264 Pixel/㎡ |
| Refresh Frequency | ≥3840Hz |
| Viewing Angle | 140/140 | 140/140 | 140/140 |
| Working Voltage | 110-220Volt/50/60hz | 110-220Volt/50/60hz | 110-220Volt/50/60hz |
| IP waterproof | IP43 | IP43 | IP43 |
| Optimal Viewing Distance | ≥ 2m | ≥ 3m | ≥ 4m |
| Working Temperature | -20~45 ℃ | - 20~40℃ | -20~45 ℃ |
Kingvisionled Advantage:
1. Excellent design should be easy to understood, the product will talk for itself, canceling the necessity of detailed explain.

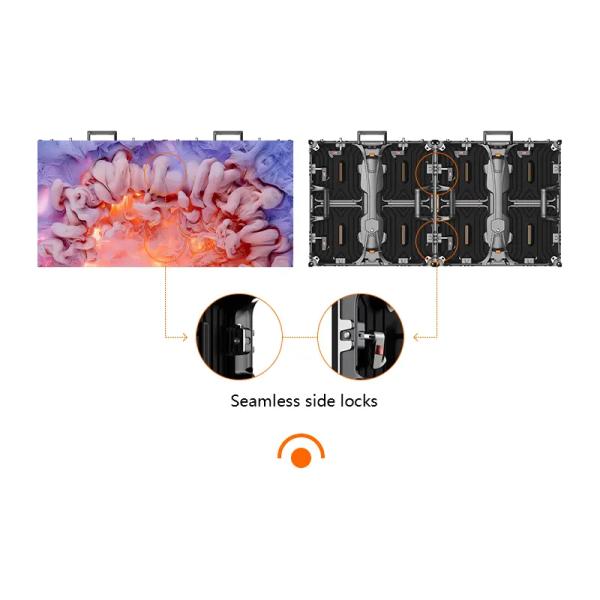

2. Seamless stitching: With our special connector design it is easy to reduce gaps while installing, creating a perfect display.
3. Adopt the latest anti-collision technology, make a more stable cabinet during rental events, make a longer life span.
4. Magnesium aluminum alloy control box, adapt to all kinds of weather.
5. Customized Arc design: bevel edge cabinet design according to customer requirements makes Arc screen assembling.
6. Seamless connection: under 0.1 mm tolerance gap between cabinet and module, under 0.2mm tolerance gap between cabinets.
7. Support rear service, it’s easy to maintenance.
8.Back-up data connection: Data transmission is vital for rental use. Because of this, there is an included back-up data connection. Once there is any unexpected problem, it can be transferred to the back-up immediately.
9.Update receiving card:NOVASTAR A5s EMC-Class B receiving cards
Church LED Video Wall Why choose us:
A1.1: Company Info: the team of bakovision have been in LED industry for almost 10 years, focusing on the led display, and have completed more than 2000 projects home and aboard,
thus we are fully experienced to provide led display solutions.bakovisiont are focusing and professional!
A1.2: R&D Team: bakovision have the R&D team with more than 8 years’ experience, and launch new products according to the customers ‘needs every year or even each quarter.
A1.3: Products: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh,
they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.
A1.4: Manufacturing: bakovision have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.
A1.5:Service: bakovision have specialized technicians before and after sales. And strong marketing team to offer you the solutions 7/24 anytime.
